NTSC AHD Camera 1080P AHD Security Surveillance High Definition Outdoor Waterproof CCTV Infrared NightVision Bullet Wired Home Camera
Product details
| Management number | 231078968 | Release Date | 2026/06/18 | List Price | $98.80 | Model Number | 231078968 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

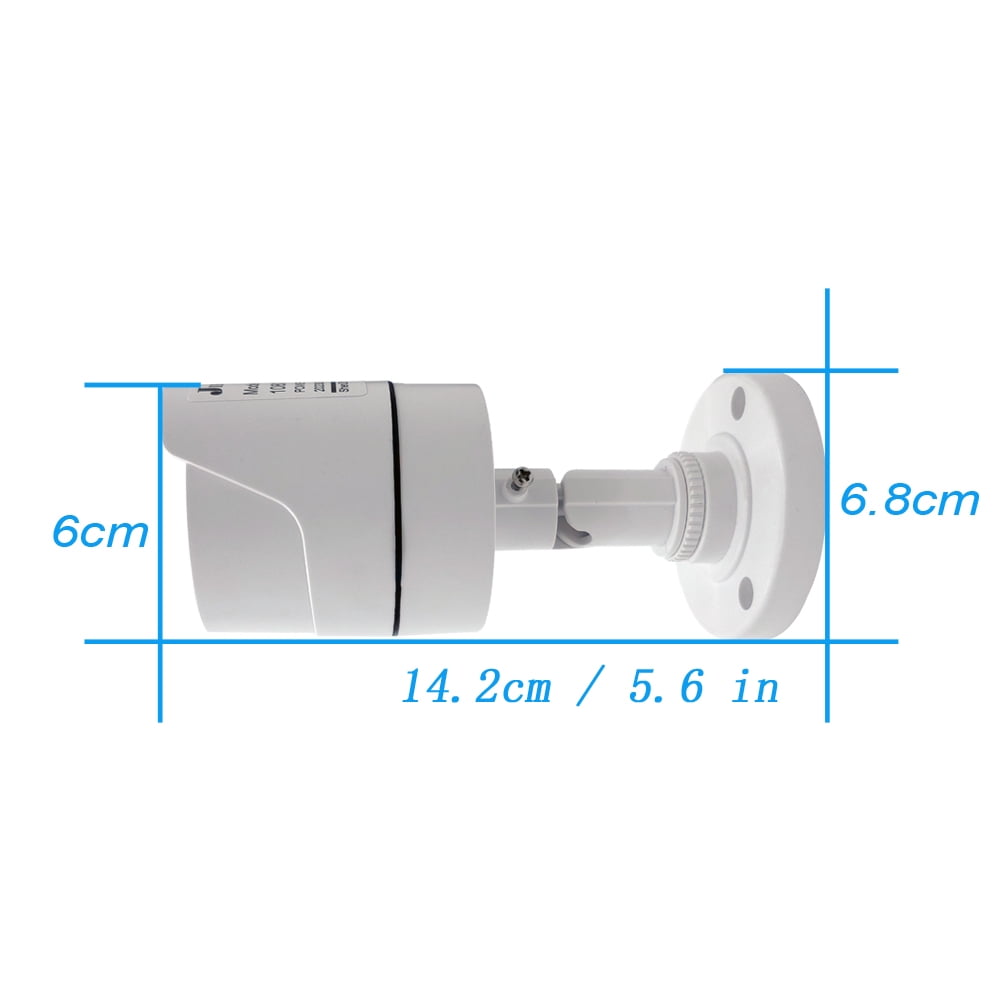

High-concerned chemical：None<br>Lens Quantity：Single Lens<br>Scene：Indoor and outdoor<br>Megapixels：2 MP<br>TF Card：None<br>Power Supply：Normal<br>Installation：Wall Mounted<br>Color：WHITE<br>isCustomized：Yes<br>Viewing Angle ：75°<br>Video Compression Format：H.264,H.265<br>IR Distance(m)：15m<br>Dimensions (L x W x D)(mm)：14.3cm*6.8cm<br>Power Supply(V)：DC12V<br>Model Number：JN-703D-AHD<br>Lens (mm)：3.6mm<br>Connectivity：Closed System/CCTV Wired<br>High Definition：1080P(Full-HD)<br>Brand Name：JIENUO<br>Origin：Mainland China<br>Special Features：Waterproof / Weatherproof<br>Certification：CE<br>Shell Material：Plastic

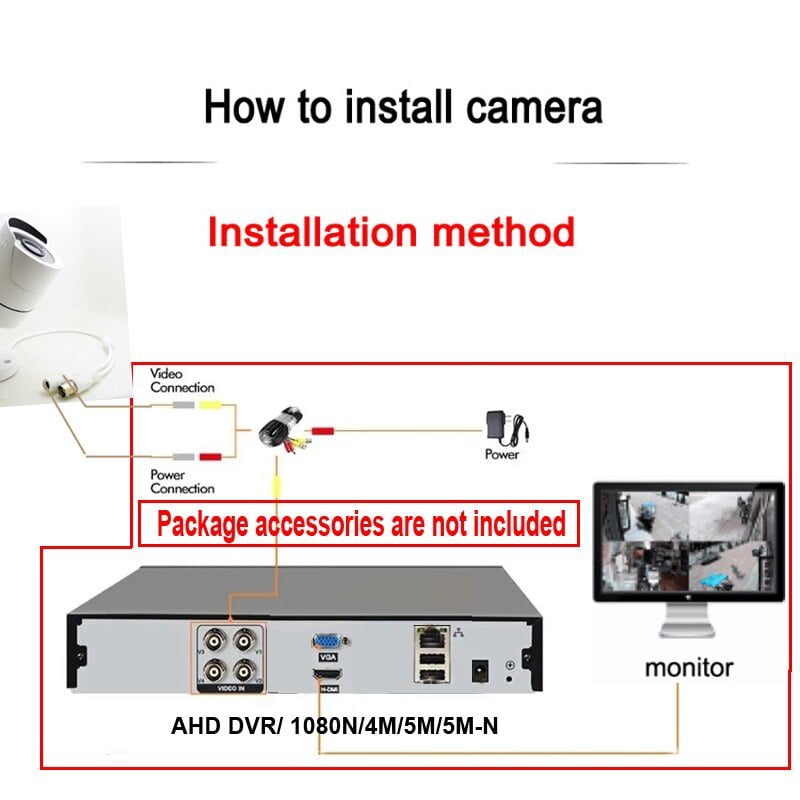

- Tips: The Order Packing does not include a power adapter, you can use the DC 12V 1A/2A power adapter.
- As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost? Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

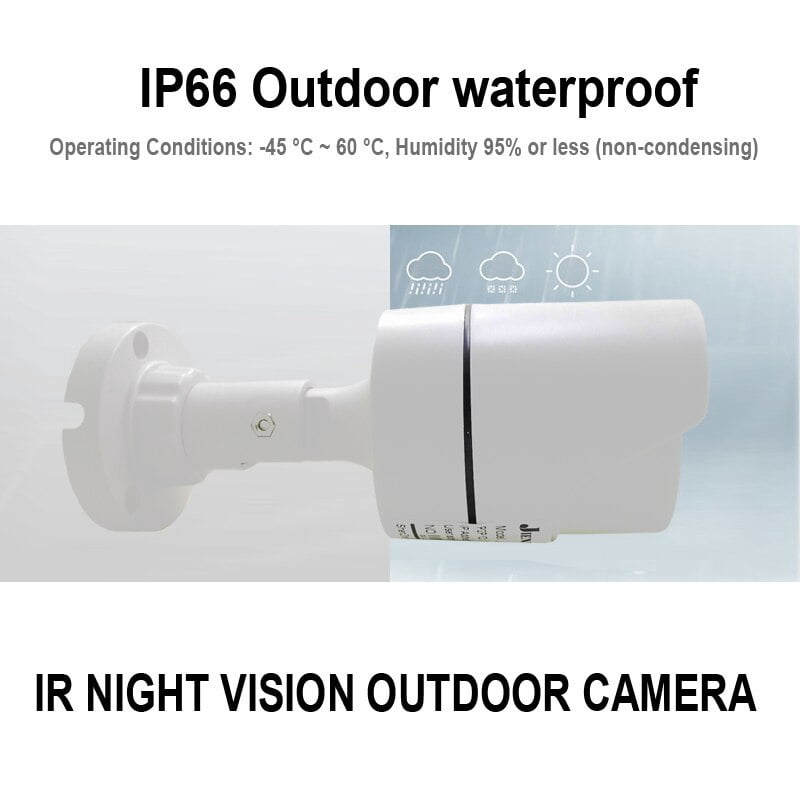

- 1.HD camera 2.Resolution : 1080P 3.24PCS IR LEDS with 5-25M IR Distance 4. Built in IR-CUT Filter, Day & Night Vision 5. High Quality ABS Plastic Case, Used Indoor/Outdoor, Waterproof IP66 6. Standard lens: HD 3.6mm Lens. 7.AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission. 8. HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation. 9. Usually use Coaxial-Cable, SYV-75-5 cable can transfer video over 500meters. 10. MUST work with AHD DVR 11. Best choice for project reconstruction. 12. You can upgrade an old analog security system to HD cameras without changing cable routes.

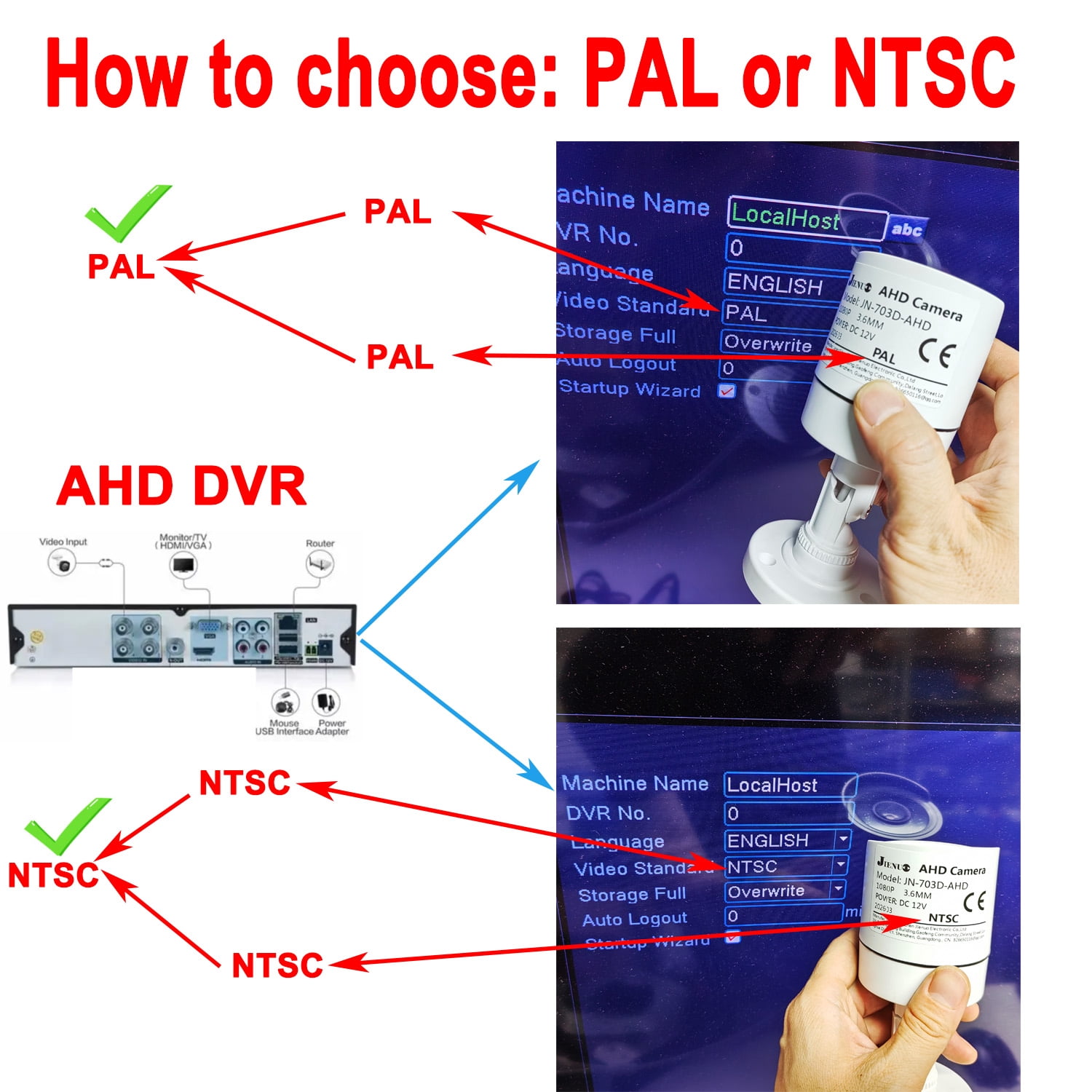

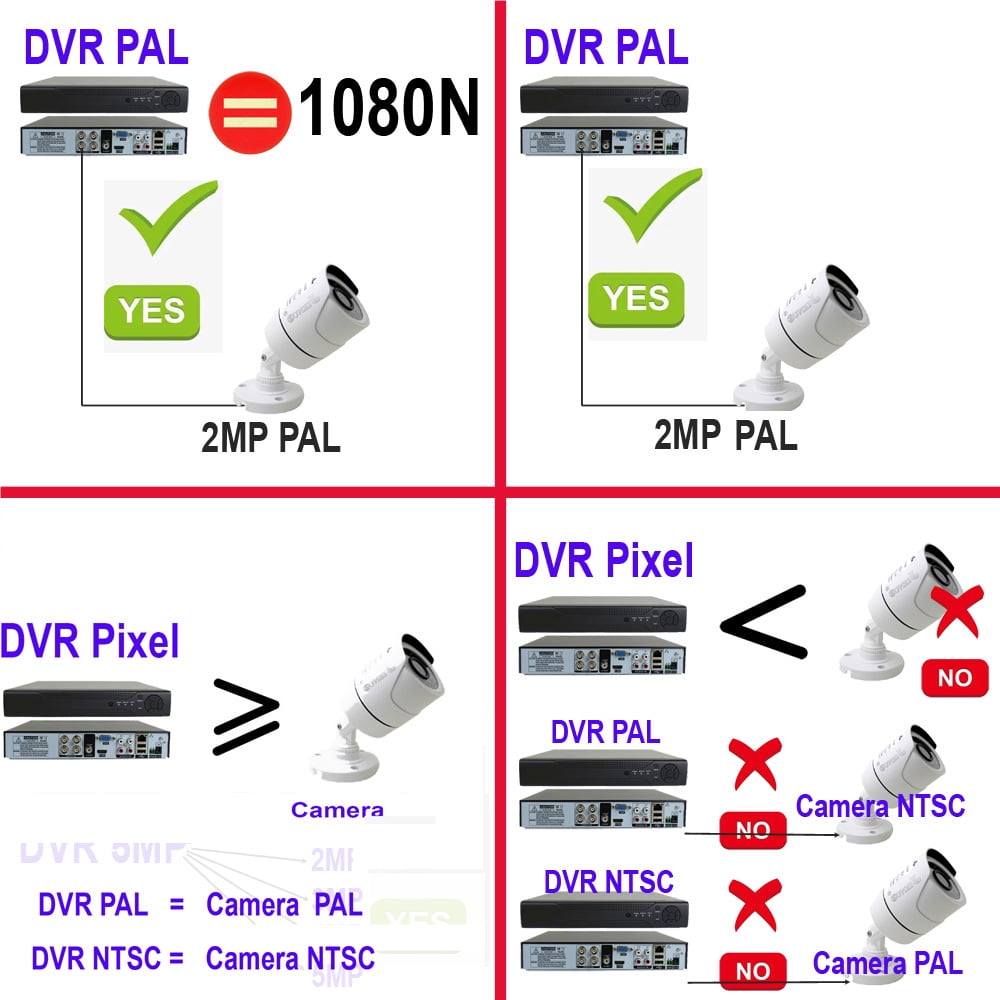

- ***P.S: Before ordering, please confirm that you have a DVR that supports AHD. Normal DVR does not support AHD cameras. Video capture card does not support AHD camera, does not support direct connection to TV and monitor When ordering, please confirm the camera system you need, such as PAL or NTSC, which is very important. Some AHD DVRs support changing the camera format, such as: XM AHD DVR, you can change it in the menu.
| Has night vision | Y |
|---|---|
| Resolution | 3.6mm |
| Field of view | 75 º |
| Features | Infrared |
| Rec location | Indoor and Outdoor |
| Power type | Corded Electric |
| Wireless | None |
| Brand | NOBRAND |
| Mount type | Wall Mount |
| Camera type | Video Surveillance Cameras |
| Lens type | Wide-Angle Lens |
| Number of cameras | 1 |
| Color | NTSC |
| Accessories included | no |
| Number of megapixels | 2 MP |
| Assembled product dimensions (l x w x h) | 5.70 x 2.70 x 2.70 in |
| Assembled product weight | 0.4 lb |
| Input/output quantity | 1 |
| Has nrtl listing certification | N |
| Model | JN-703D-AHD |
